01 / Photos

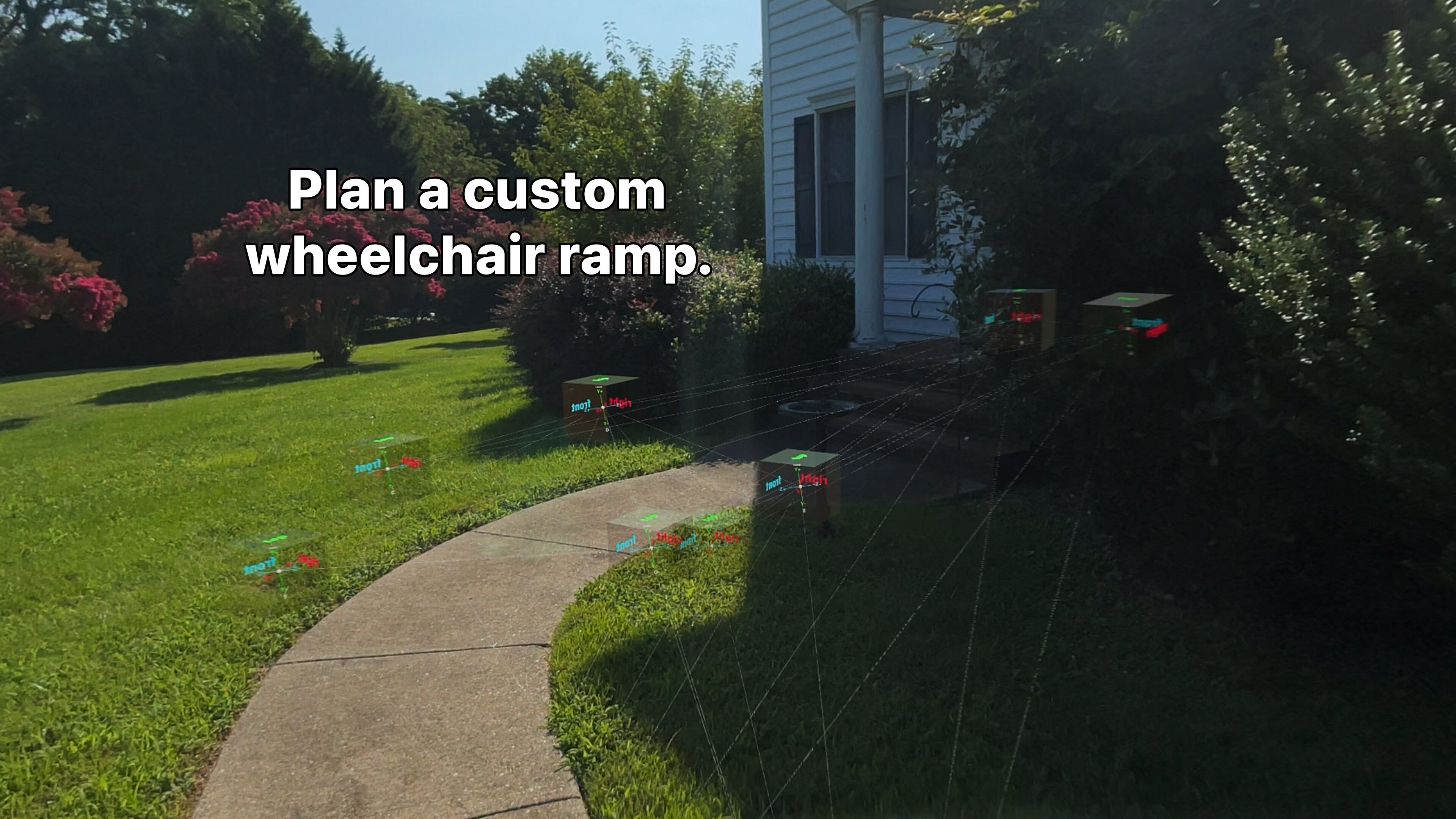

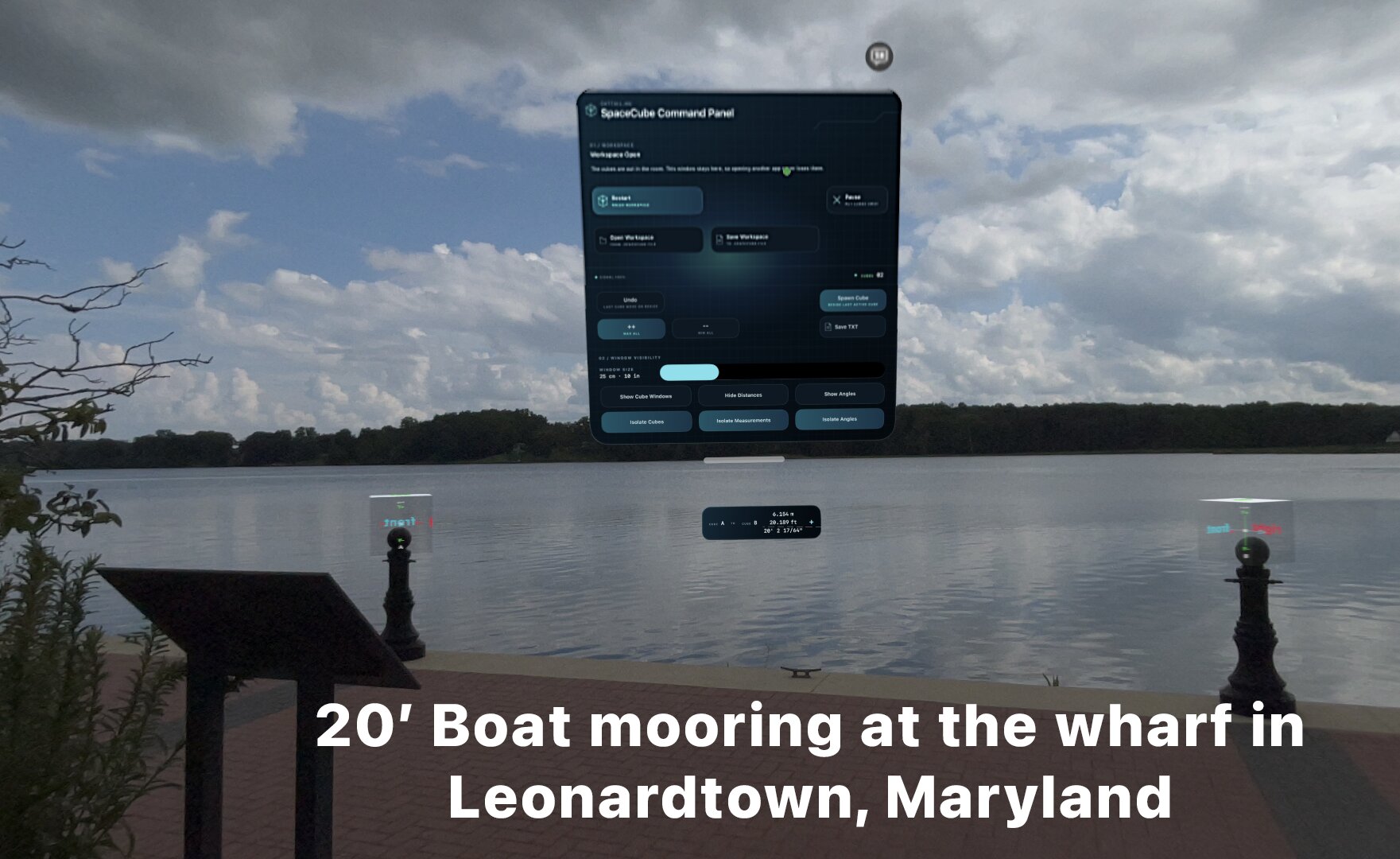

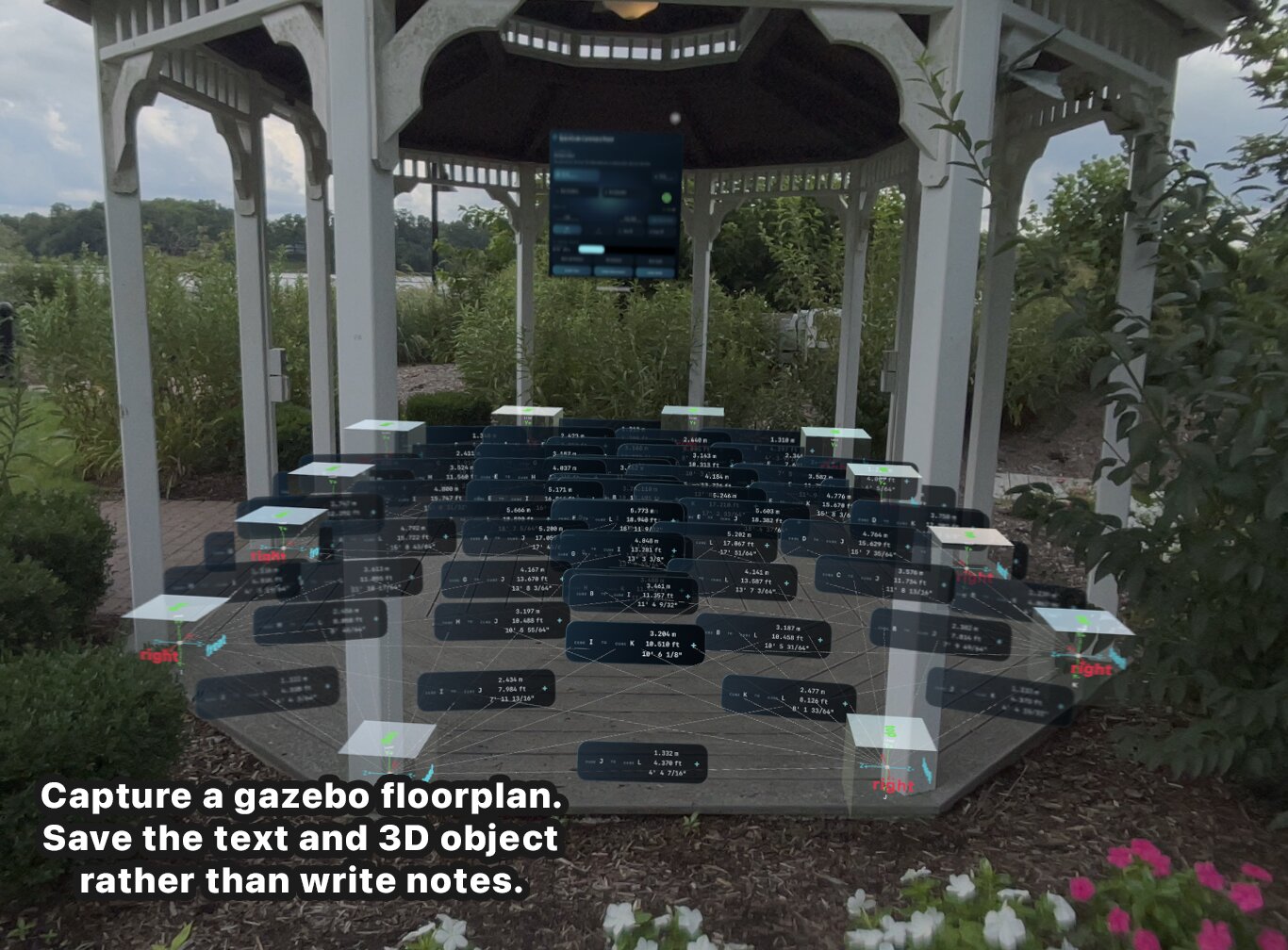

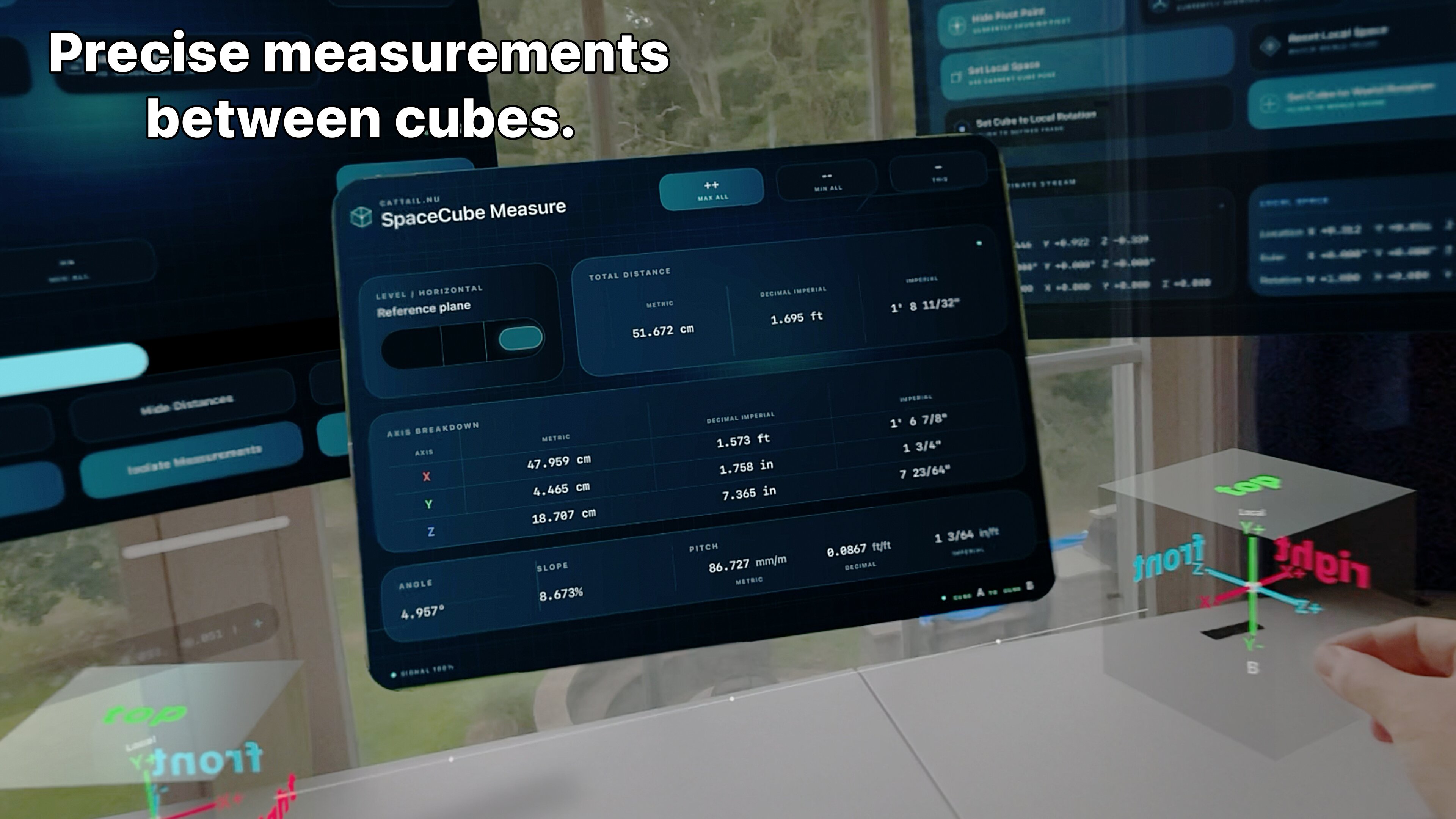

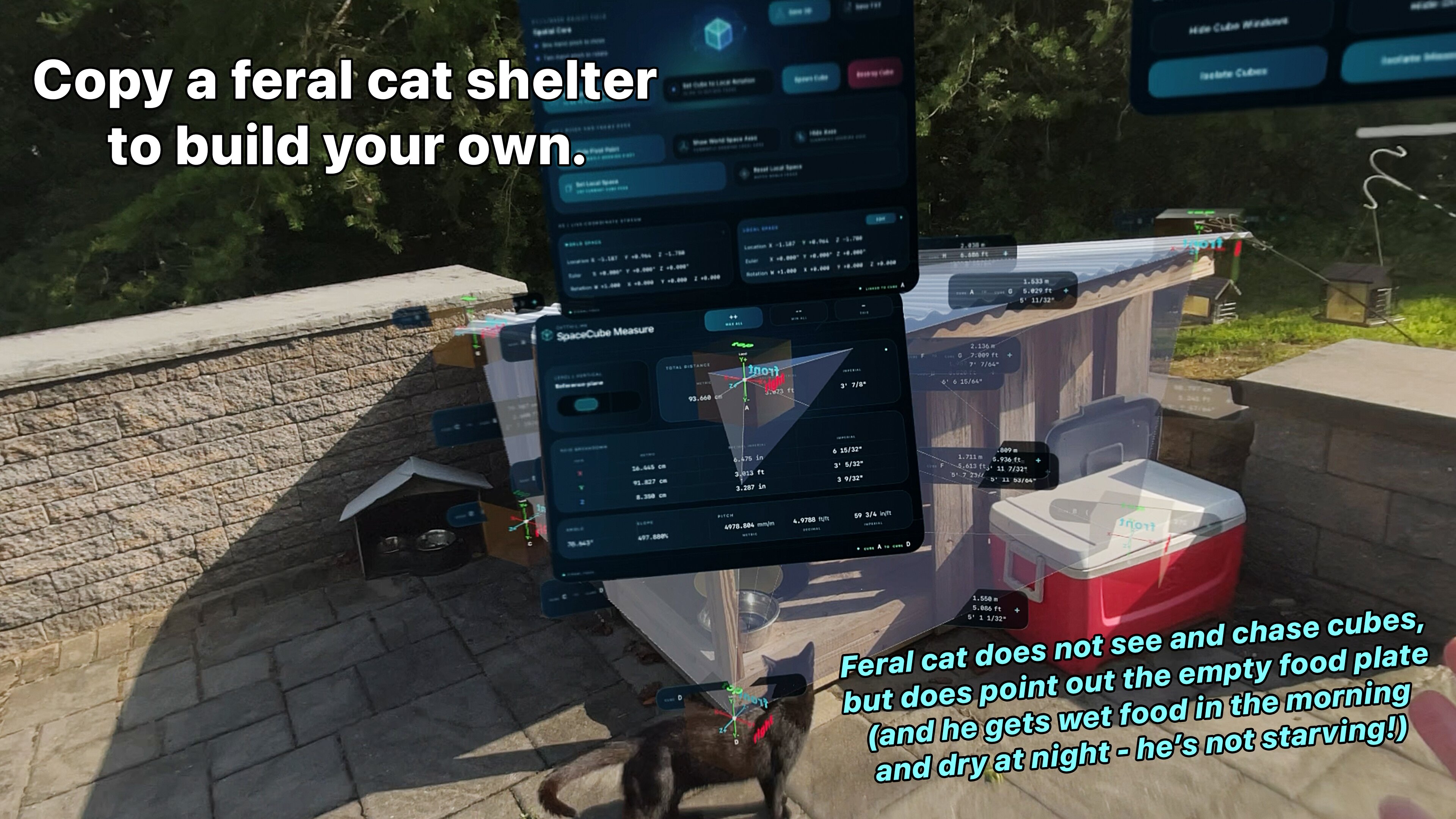

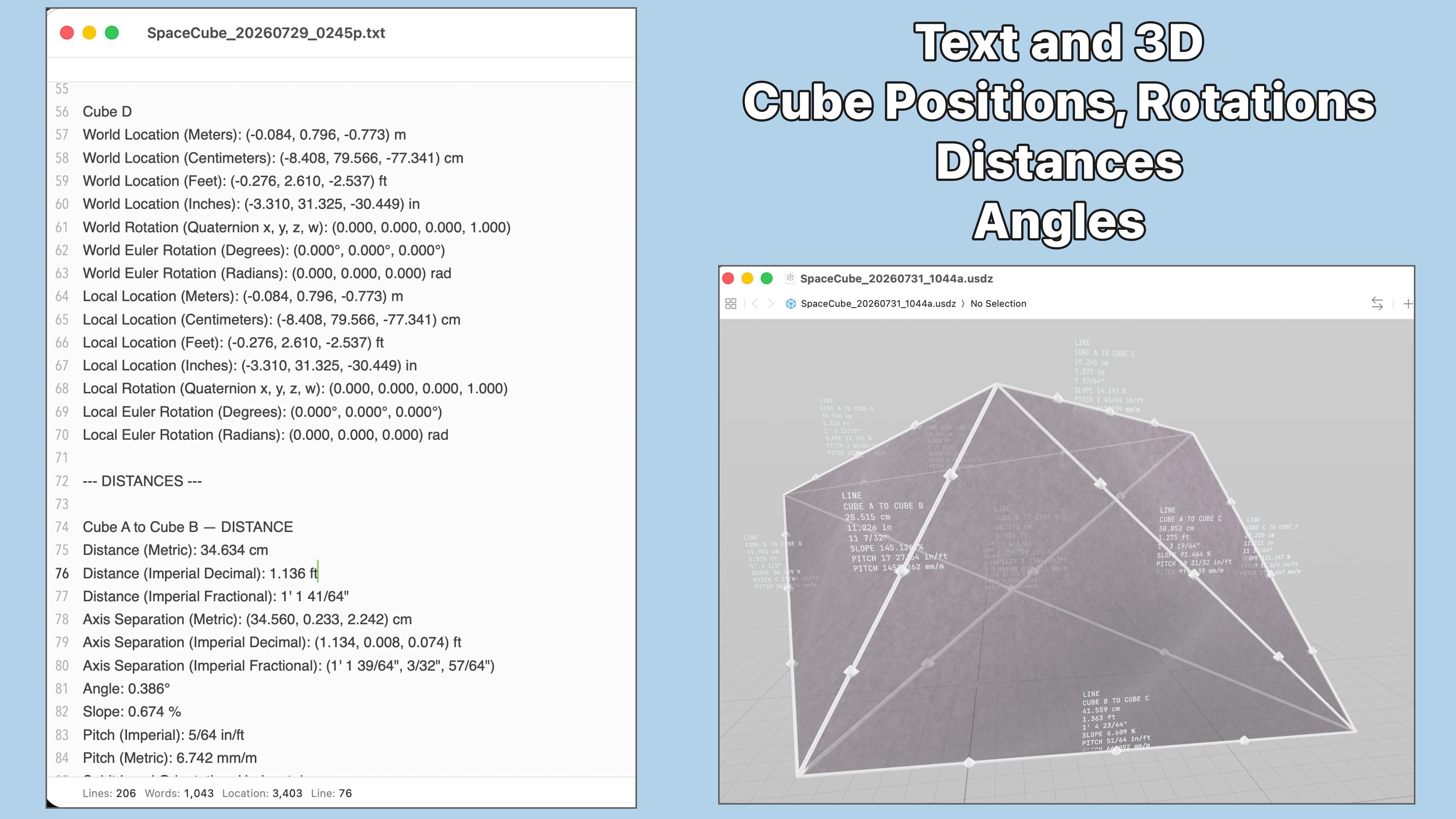

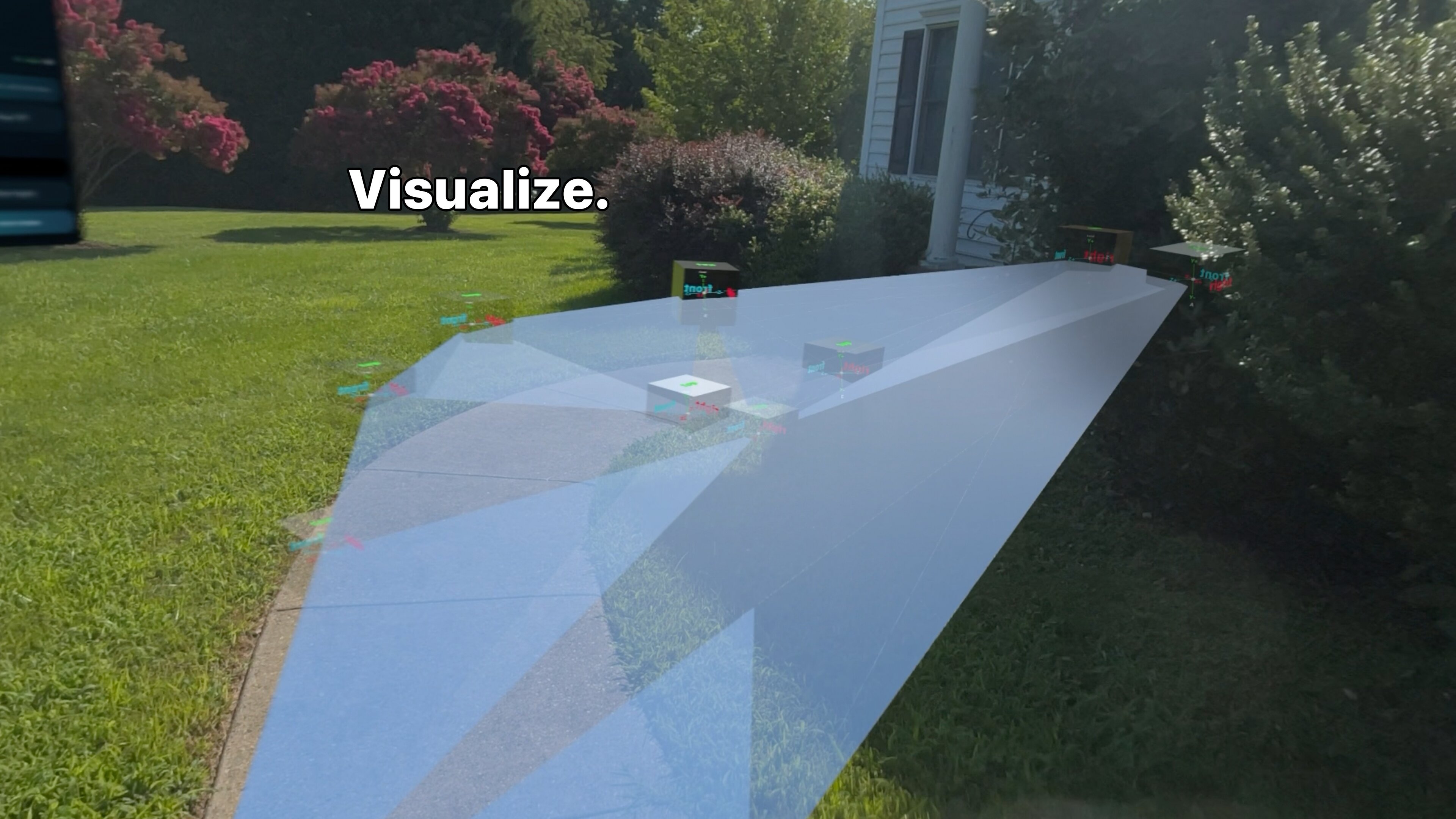

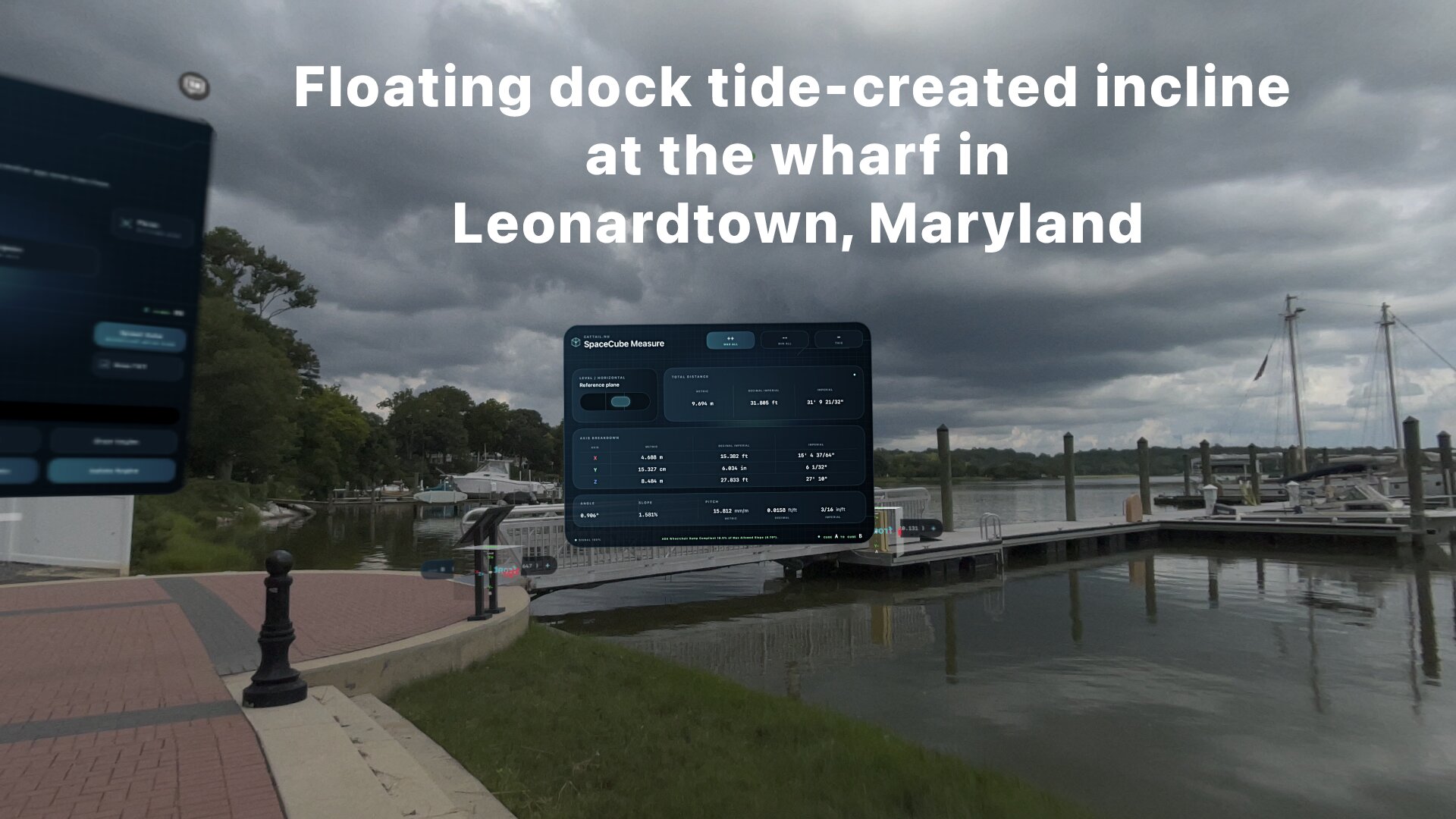

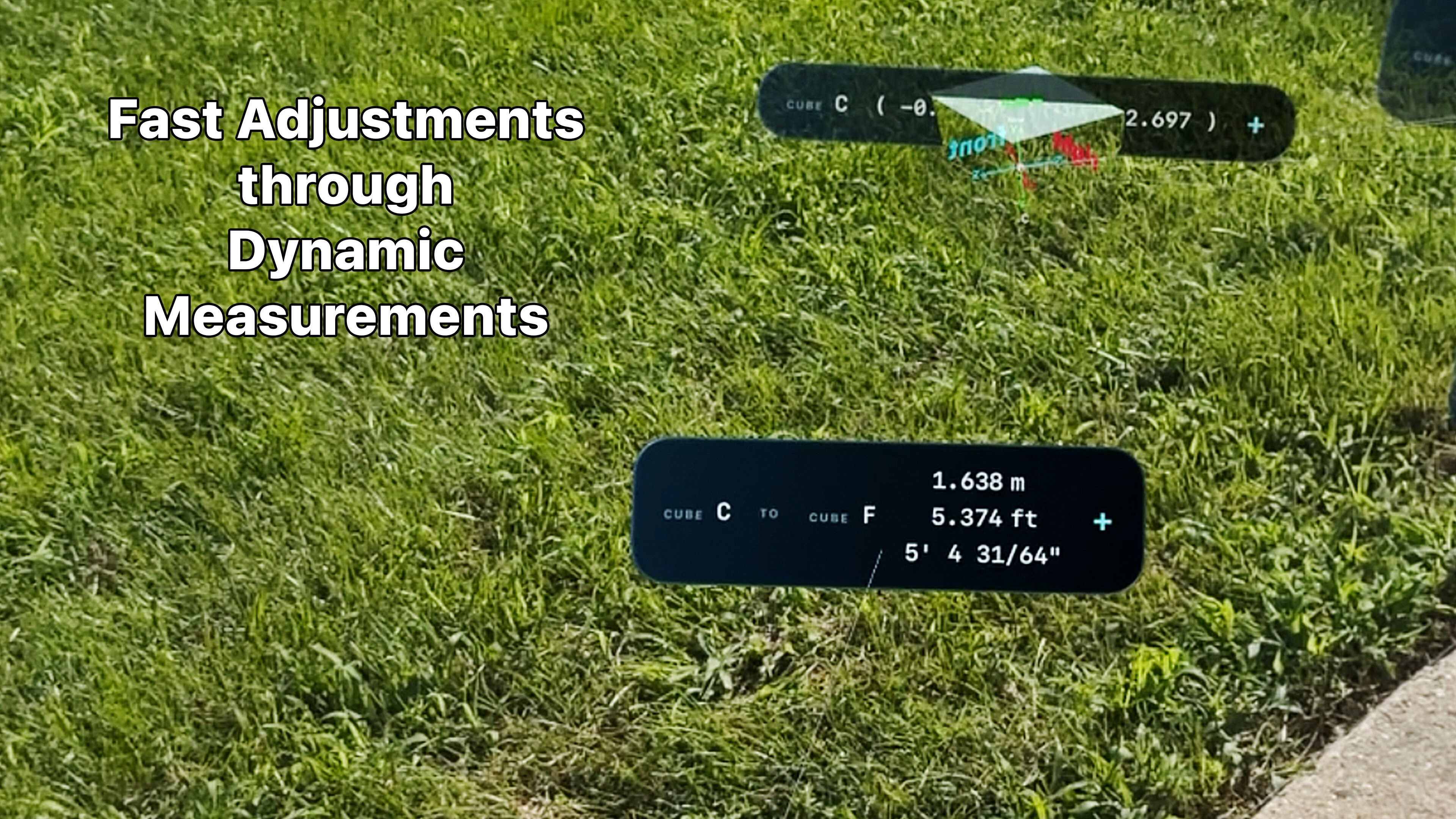

Visualize a new wheelchair ramp. Plan a new wheelchair ramp.Photo Get an estimate of the size needed. Visualize a new wheelchair ramp. Visualize a new wheelchair ramp.Photo Walk through the potential ramp's space. Precise measurements. Fast adjustmentsPhoto Make quick adjustments. Getting the floorplan for a gazebo. Getting a gazebo floor plan.Photo Leave the pencil, paper, and tape measure at home. Save the text file to keep all measurements. Save the 3D object to import into your architecture design tool. Getting the incline of a ramp. How steep is the incline?Photo This ramp connects a floating dock to the shore. How big is the mooring area for boats? How big is the mooring area for boats?Photo Several of these areas are equally spaced along the boardwalk. Copy a cat shelter. Copy a cat shelter.Photo The cat does not need more food right now, no matter what he says. Precise measurements. Precise measurements.Photo Work small at your desk. Export 3D Objects. Export 3D objectsPhoto Choose what you want to export and what format. Save text and 3D objects Save textPhoto Use both text and 3D objects to capture your measurements.
02 / Application Windows

All window font sizes are controlled from the Command Panel (app window).

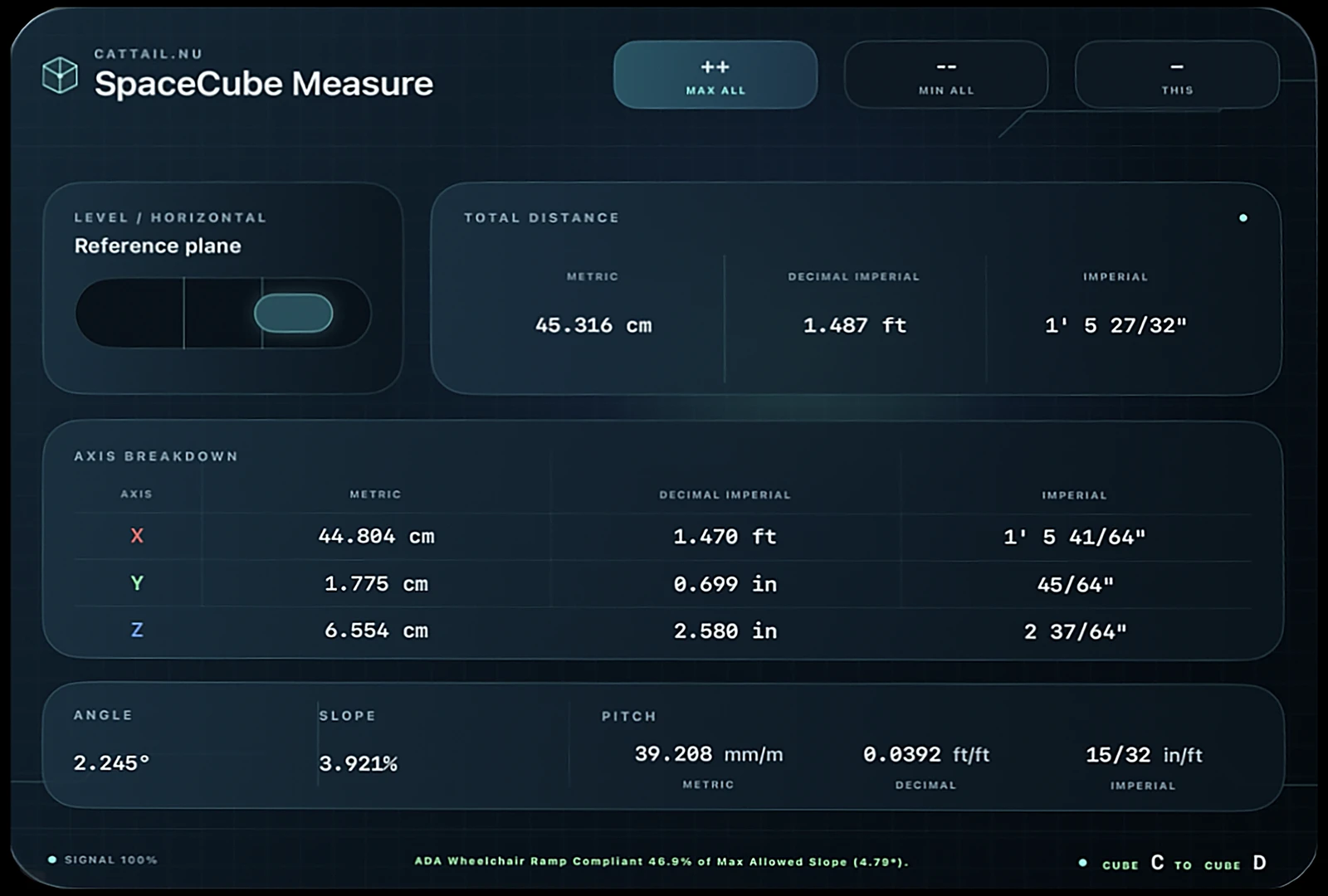

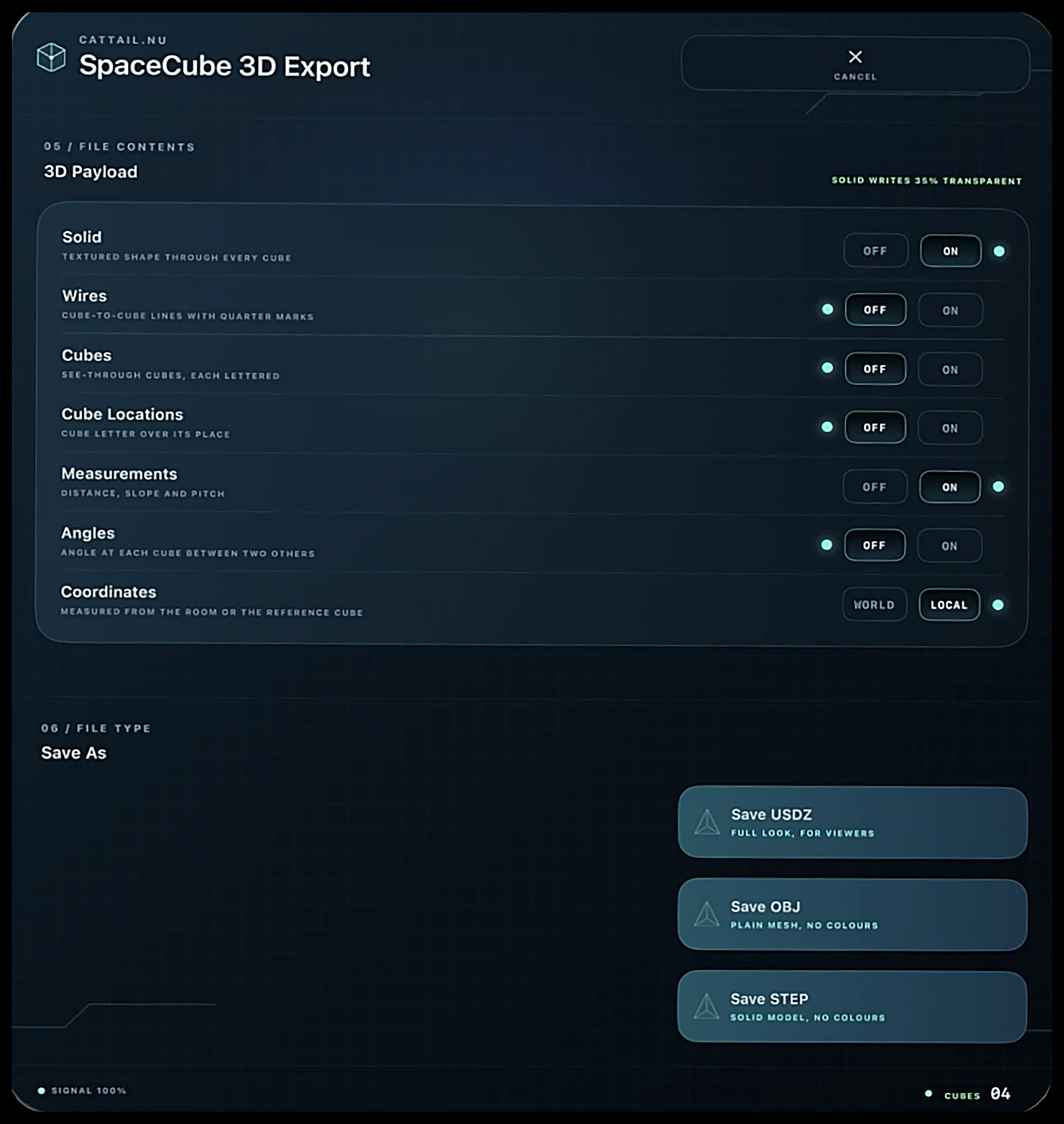

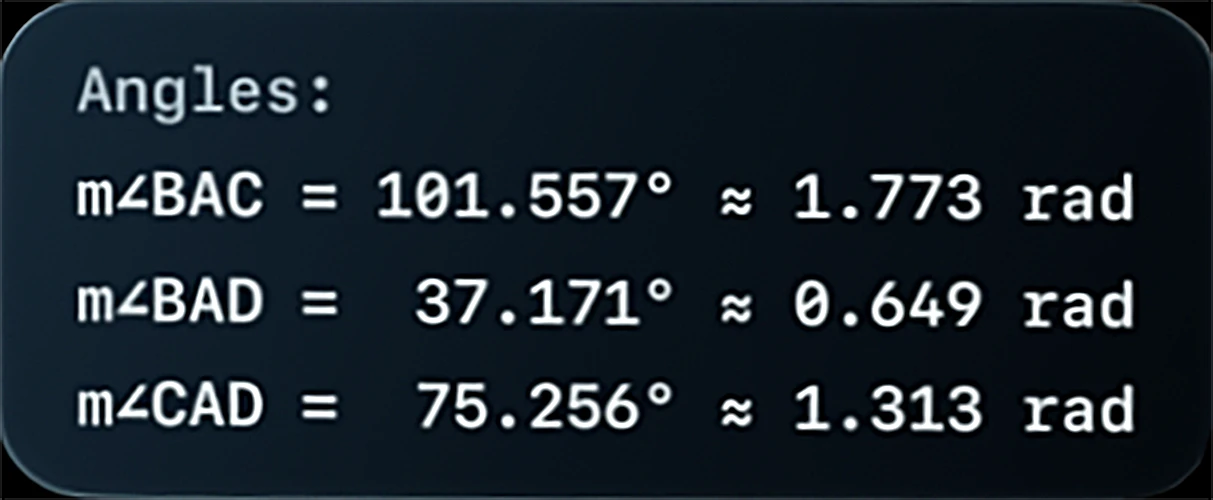

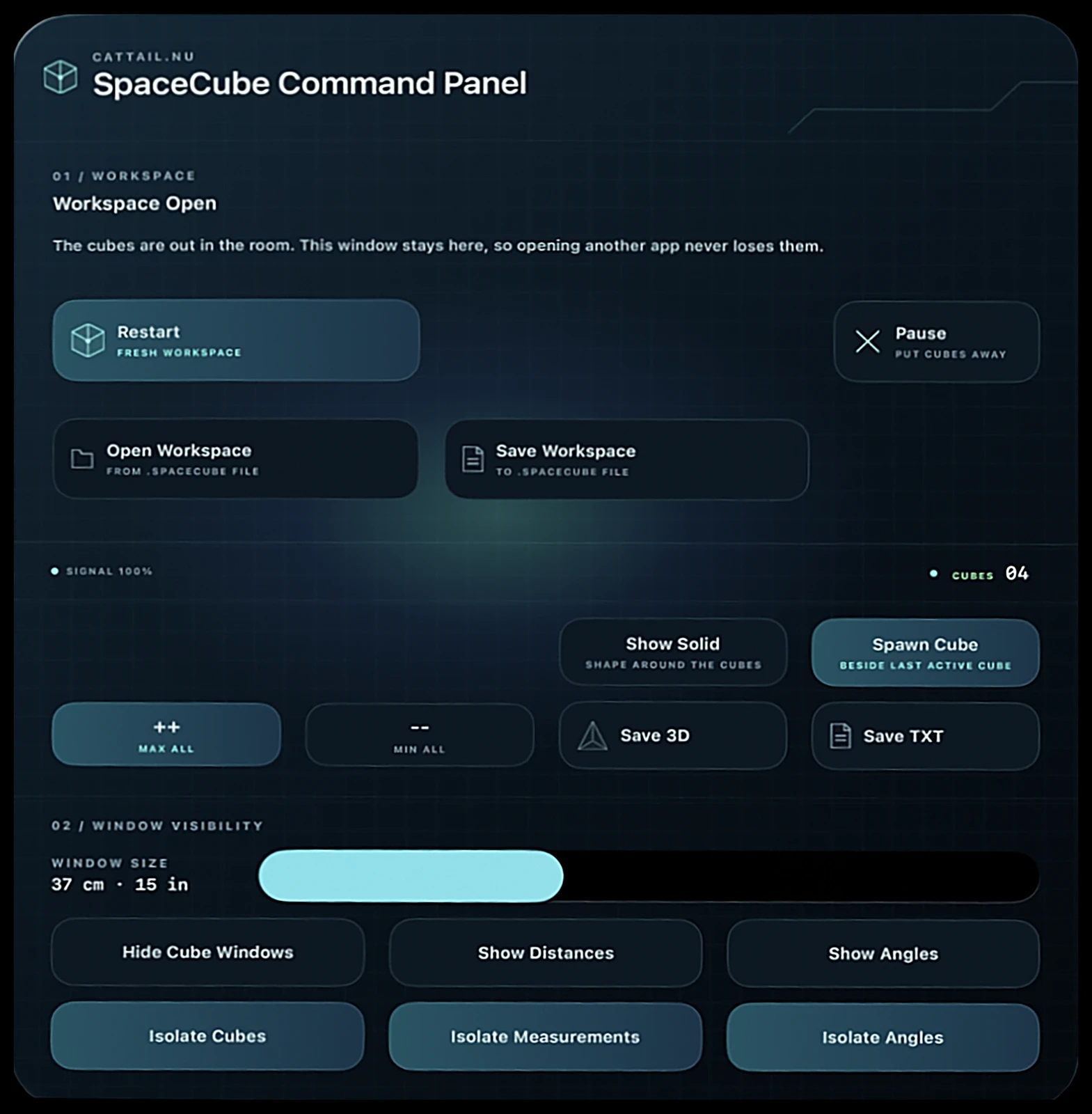

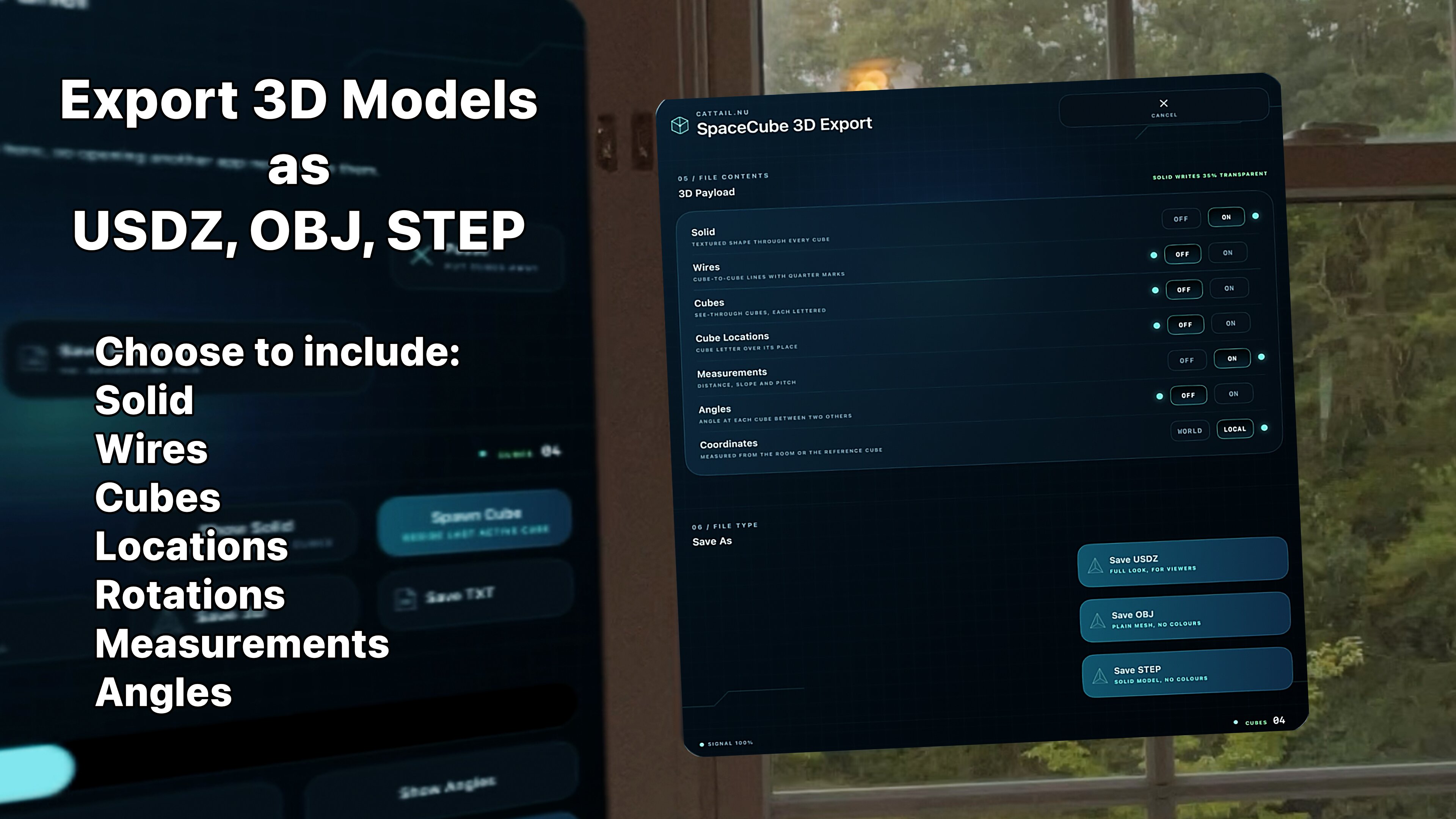

The app window, with controls to restart, pause, open, and save a workspace, a window size slider, and toggles for which windows are shown. App windowWorkspace Start, save, restore, and pause a workspace. Control the workspace appearance. Close this with the window's X at the bottom to exit the app. The cube window, showing a cube's world and local coordinates, guide controls, and a live coordinate stream. Cube windowLive coordinates One window per cube with world and local coordinates and rotation. The measurement window, showing total distance, a per-axis breakdown, and slope, angle, and pitch. Measurement windowDistance & slope The straight-line distance between two cubes in metric and imperial, with a spirit level, slope, angle, and pitch. Will also flag ADA wheelchair ramp compliance. The angle window, showing the angles a cube makes between two others in degrees and radians. Angle windowDegrees & radians A small panel at each cube giving the angles it makes between other cubes in degrees and radians. The 3D export window, with switches for what the file contains and buttons to save USDZ, OBJ, or STEP. 3D export windowUSDZ, OBJ & STEP Select file options — the wrapping shape, the cubes, their labels, measurements, and angles — then save it as USDZ, OBJ, or STEP.
03 / Videos

Watch it work.

Short walkthroughs of the cubes in use, recorded in the immersive space.

Quick Overview on YouTube
Walk-through on YouTube
